Underground Fire Line
Everything above grade — your sprinkler risers, standpipes, and private hydrants — depends on what's buried below it. We install, hydrostatically test, and maintain underground fire service mains under NFPA 24 and NFPA 25 across Texas, with acceptance testing before backfill and main performance trended over time so you know before an inspection does.
What it is
The underground fire service main is the buried piping network that carries water from the public water main connection (or private storage tank) to the building's fire protection systems — sprinkler risers, standpipe supply, and private hydrant outlets. Every above-ground fire suppression system depends on what's underground. An undersized, incorrectly installed, or deteriorated underground main is the most common reason a building's fire protection system delivers less water than the hydraulic design requires — and it is typically invisible until a flow test or, worse, an actual fire reveals the deficiency.
NFPA 24 (Standard for the Installation of Private Fire Service Mains and Their Appurtenances) governs the design and installation of underground fire mains on private property. Requirements include pipe material selection (ductile iron, HDPE, or other listed materials), minimum burial depth, thrust restraint, valve placement, backflow prevention, and post-installation hydrostatic and flush testing. The installation must be witnessed and accepted before backfilling — a requirement that is sometimes bypassed on fast-track construction projects, leaving no record of a compliant acceptance test.
Ongoing inspection and maintenance of underground fire service mains is required by NFPA 25 Chapter 7. While the pipe itself is buried and largely inaccessible, inspections cover exposed sections, above-ground appurtenances (control valves, backflow preventers, post indicator valves, fire department connections), and the performance indicators accessible through main drain tests and flow tests. Zion installs new underground fire mains on new construction and retrofit projects, performs the acceptance flush and hydrostatic test required by NFPA 24, and provides ongoing NFPA 25 ITM.
What code governs it
NFPA 24 — Standard for the Installation of Private Fire Service Mains and Their Appurtenances — 2022 edition. Ongoing ITM governed by NFPA 25 (2023 edition), Chapter 7.
Texas adoption: Underground fire service main installation falls within the sprinkler contractor scope regulated by Texas Administrative Code Title 28, Chapter 36, administered by the Texas State Fire Marshal's Office. Zion holds TX SFM SCR #2571606.
International Fire Code reference: IFC §507 (fire protection water supplies — required fire flow, hydrant spacing, private fire service mains); §507.5.1 (where fire flow testing required).
Required inspection & test frequency
Per NFPA 25 Chapter 7, the following inspection and test intervals apply to private fire service mains and their above-ground appurtenances. The buried pipe itself is not directly inspectable on a routine basis — performance is evaluated through flow and pressure tests.
| Activity | Frequency | Code reference |
|---|---|---|
| Visual inspection — exposed sections of underground main and above-ground appurtenances | Annually | NFPA 25 §7.2.1 |
| Post indicator valves (PIVs) and outside screw & yoke (OS&Y) valves — operation and condition | Annually (full operation test) + weekly or monthly visual | NFPA 25 §13.3 |
| Fire department connection (FDC) — caps, swivels, threads, check valve | Annually | NFPA 25 §13.8 |
| Backflow preventer — inspection and test | Annually (per state plumbing code and AWWA requirements) | NFPA 25 §7.2.1 + TAC Title 30 Ch. 290 |
| Main drain test — static and residual pressure | Annually (and after any underground work) | NFPA 25 §13.2.5 |
| Flow test — Pitot gauge hydrant/main flow measurement | Every 5 years | NFPA 25 §7.3.2 |
| Hydrostatic pressure test — new installation | At acceptance (200 psi or 50 psi above max system pressure for 2 hours) | NFPA 24 §10.1 |
| Flush test — new installation (to remove debris before connection to sprinkler system) | At acceptance, before connection to sprinkler system | NFPA 24 §10.3 |
What you'll receive from Zion
Every visit ends with documentation your AHJ and insurance carrier will accept on the first review:
- NFPA 24 acceptance test report documenting hydrostatic test pressure, test duration, and observed leakage (pass/fail); required before the AHJ permits occupancy
- Flush test record confirming the underground main was flushed to remove debris before connection to the building's sprinkler system
- Annual NFPA 25 inspection report for all accessible appurtenances (valves, FDC, backflow preventer, exposed piping sections)
- Main drain test data sheet with static and residual pressures, used as the baseline for year-over-year performance comparison
- 5-year flow test data sheet with Pitot gauge measurements at the point of connection or hydrant outlets
- Backflow prevention test certificate (required annually by Texas Commission on Environmental Quality under Texas Water Code)
- AHJ-ready inspection certificate for the property's fire-protection compliance folder
Common deficiencies we find
If you're inheriting a building or evaluating an incumbent service provider, these are the issues we see most often — and what they cost to fix when found before an AHJ visit:
- No NFPA 24 acceptance test on record — the most consequential missing document on an acquired commercial property; without a hydrostatic test record there is no evidence the underground main was ever pressure-tested or that debris was flushed before connecting to the sprinkler system
- Fire department connection (FDC) swivel gaskets missing or hardened — an FDC that cannot seat a pumper connection is useless during fire department operations; gasket inspection is a 5-minute check that is skipped on buildings with deferred maintenance
- FDC capped threads corroded — corroded threads on an FDC mean the fire department cannot make a connection; caps that appear intact but have seized threads are not identified without a thread gauge check
- Post indicator valve (PIV) padlocked closed — an underground isolation valve in the closed position (with an incorrect 'OPEN' indicator or a locked closed position that wasn't recorded) starves the entire fire protection system; PIV position must be verified during every annual inspection
- Backflow preventer annual test never performed — Texas Commission on Environmental Quality (TCEQ) and the local water utility require annual backflow prevention testing on all commercial fire service connections; many properties are non-compliant on the utility side without knowing it
- Main drain test shows significant pressure differential from baseline — a static-to-residual pressure drop during the annual main drain test that is substantially larger than the baseline reading indicates increased system resistance (main corrosion, tuberculation, or a partially closed underground valve) that is not visible above grade
- Underground main diameter insufficient for combined demand — a main sized for a standalone sprinkler system at original construction has been extended to supply a standpipe or additional fire hydrants without a hydraulic recalculation; the supply can't meet combined demand
- No thrust restraint on fittings — underground elbows, tees, and reducers not restrained with thrust blocks or mechanical restraint are subject to joint blowout under hydrostatic test or fire pump pressure; common in older construction where the acceptance test was never performed
Why Zion for this work
Acceptance test before backfill
NFPA 24 §10.1 requires a hydrostatic test before the trench is backfilled. We schedule the AHJ witness inspection and complete the hydrostatic test while the pipe is still exposed — so you have a tested, compliant installation with a signed test record, not an unverified underground pipe that you can't re-expose without significant cost.
Main performance trended over time
Annual main drain tests and 5-year flow tests generate comparative data that reveals underground main deterioration before it causes a system failure. We track pressure and flow results across inspection cycles and flag when readings trend downward — a proactive indicator that a main inspection or repair is needed before a fire event reveals the problem.
Backflow compliance handled
Underground fire main backflow preventers require annual testing under both NFPA 25 and Texas TCEQ regulations. We test and certify backflow preventers as part of the annual ITM visit and submit the required test report to the water utility — eliminating the coordination gap between the fire protection contractor and the water utility compliance requirement.
Frequently asked questions
What is an underground fire service main?
An underground fire service main is the buried piping that connects the public water supply (or private tank/reservoir) to your building's fire protection systems — fire sprinklers, standpipes, and private hydrants. It is different from the domestic water service that supplies sinks and toilets. The fire service main is dedicated to fire protection, typically separated from the domestic supply by a backflow preventer, and sized specifically for the fire flow demand calculated under NFPA 13 or NFPA 14.
How deep does an underground fire main need to be buried in Texas?
NFPA 24 §5.2 requires the top of the pipe to be at least 30 inches below finished grade (or below the frost line if greater than 30 inches). In most of Texas, frost penetration is not a concern, so the 30-inch minimum applies. Some local jurisdictions require greater depth in high-traffic areas (under driveways or parking lots) to prevent damage from vehicle loads. The pipe must also be provided with a suitable bedding material and protection from corrosion depending on soil conditions and pipe material.

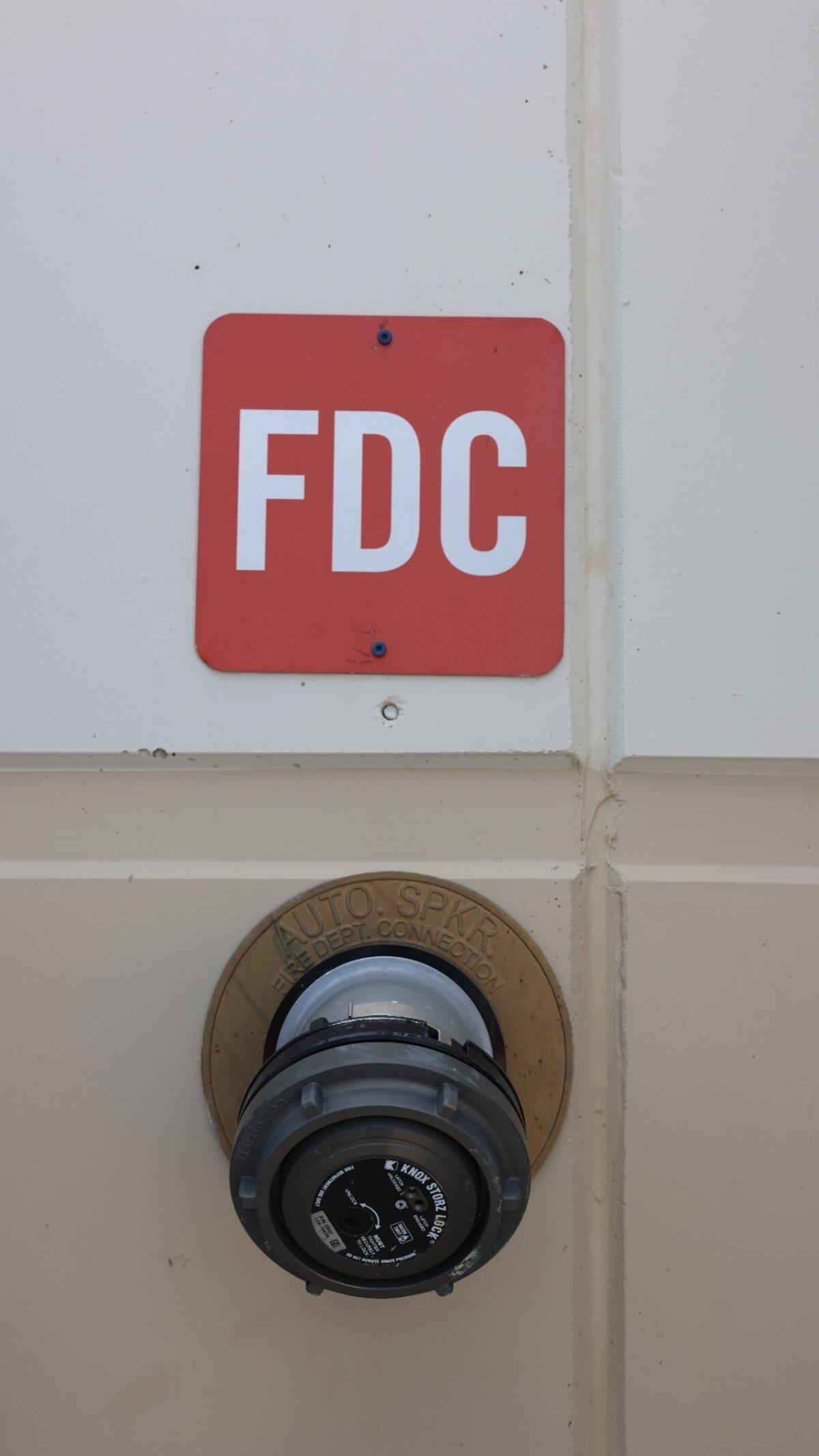

What is a fire department connection (FDC) and why does it need inspection?
The FDC is the above-grade inlet through which the fire department pumps supplemental water into your sprinkler or standpipe system from a pumper truck. It is typically a Siamese connection (two 2½-inch inlets) with swivel caps. NFPA 25 §13.8 requires annual inspection of the FDC including cap condition, swivel gaskets, thread condition, and the check valve that prevents system water from draining out through the FDC. A damaged FDC means the fire department cannot boost pressure when the building's supply is inadequate — which is exactly when they need it most.
Does my fire service main backflow preventer need to be tested separately?
Yes — and it is a separate regulatory requirement from the NFPA 25 annual inspection. The Texas Commission on Environmental Quality (TCEQ) and local water utilities require annual testing of backflow prevention devices on commercial fire service connections to protect the public water supply. The test must be performed by a state-licensed backflow prevention assembly tester and the results submitted to the water utility. Zion performs both the NFPA 25 inspection and the TCEQ backflow test in a single visit on accounts where we hold the full ITM contract.
What does NFPA 24 require at installation?
Before backfilling, NFPA 24 §10.1 requires a hydrostatic pressure test at 200 psi (or 50 psi above the maximum system working pressure if greater) for 2 hours, with observed leakage not exceeding the allowable limit. NFPA 24 §10.3 requires a flush of the underground main at a velocity of at least 10 feet per second to remove debris before the pipe is connected to the building's fire protection system. Both tests must be documented and the records retained as part of the building's fire protection compliance record.
