Fire Pump Systems
When municipal water pressure can't meet your sprinkler or standpipe system demand, your fire pump is what closes the gap — and NFPA 20 requires regular flow testing to confirm it still will. We install, commission, and maintain electric and diesel-driven fire pumps for Texas commercial buildings under NFPA 20, with full-curve flow testing, diesel PM, and coordination across your sprinkler and monitoring systems.
What it is
A fire pump is required whenever the available municipal water supply pressure and flow cannot satisfy the hydraulic demand of the building's fire suppression system — sprinklers, standpipes, or both. This is common in high-rise buildings, large-footprint warehouses and distribution centers, campus environments with extended underground runs, and any site where the domestic service connection is too undersized to feed a fire flow requirement. The pump takes suction from the building's water supply (municipal main, private tank, or reservoir) and boosts pressure to the required system demand.

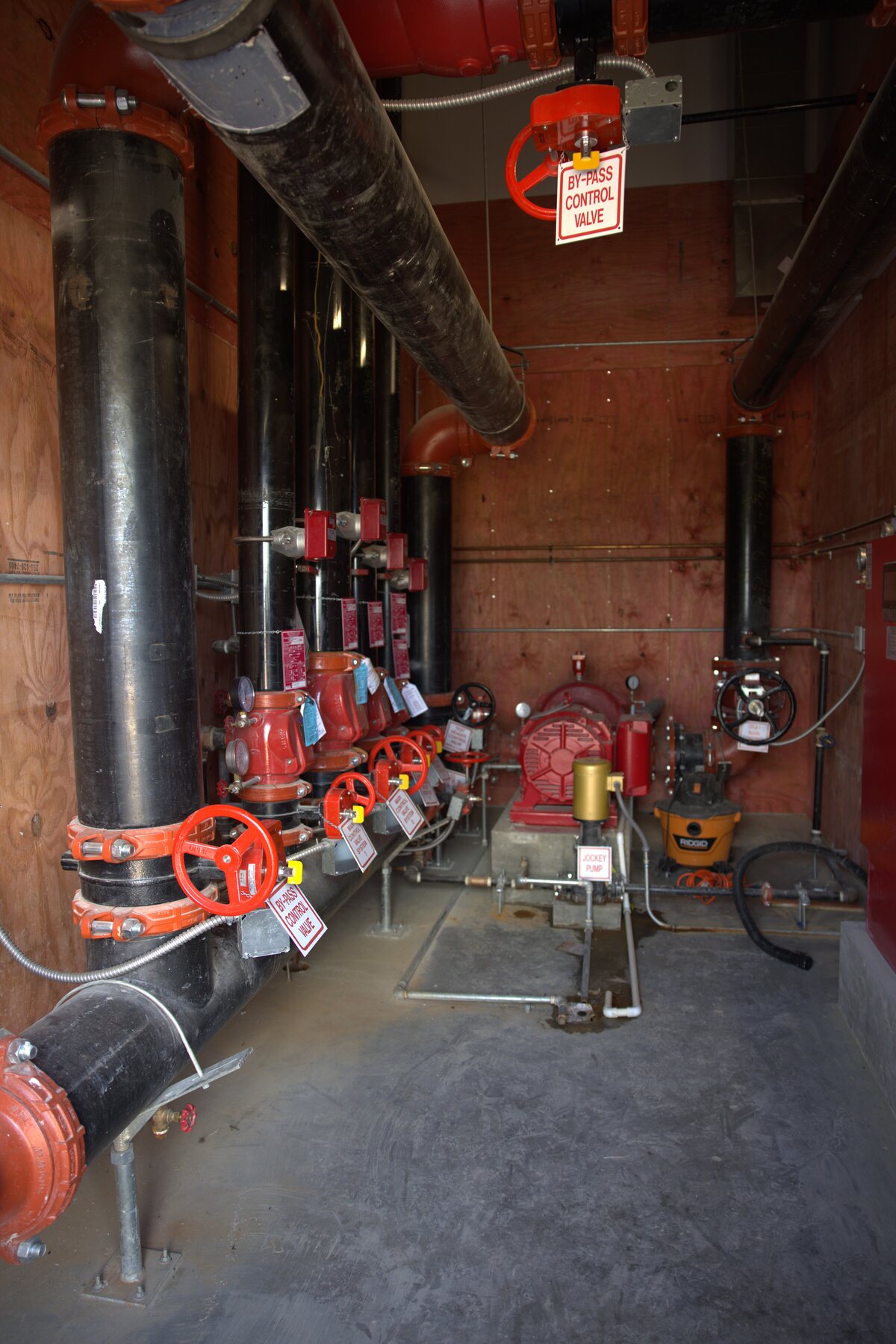

NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection) governs selection, installation, and acceptance testing of fire pumps. The 2025 edition is currently referenced as typical by Texas AHJs. Fire pump assemblies include the pump itself (horizontal split-case, vertical turbine, end suction, or in-line depending on flow and head requirements), driver (electric motor or diesel engine), controller, jockey pump, pressure-relief valve, test header, and flow meter. Diesel-driven pumps add a fuel tank, battery system, and cooling system — all with their own maintenance requirements.
The fire pump is the single piece of equipment that determines whether the entire suppression system functions during a fire. A pump that starts but cannot reach rated capacity, or a diesel that fails to auto-start, means the sprinkler and standpipe systems are pressure-starved at the worst possible moment. Zion installs fire pump assemblies, performs the NFPA 20 acceptance test witnessed by the AHJ, and provides the ongoing annual and weekly test program required by NFPA 25.
What code governs it
NFPA 20 — Standard for the Installation of Stationary Pumps for Fire Protection — 2025 edition currently referenced as typical by Texas AHJs. ITM governed by NFPA 25 (2023 edition).
Texas adoption: Fire pump systems in Texas fall under the sprinkler contractor scope regulated by Texas Administrative Code Title 28, Chapter 36, administered by the Texas State Fire Marshal's Office. Zion holds TX SFM SCR #2571606.
International Fire Code reference: IFC §913 (fire pumps — installation, testing, and documentation requirements).
Required inspection & test frequency
Per NFPA 25 Chapter 8 and NFPA 20, the following inspection and test intervals apply to fire pump assemblies. Both electric and diesel drivers have unique requirements — the intervals below cover the most common items across both driver types.
| Activity | Frequency | Code reference |
|---|---|---|
| Pump churn test (no-flow weekly run) | Weekly | NFPA 25 §8.3.1 |
| Diesel engine — weekly run (load / no-load) | Weekly (minimum 30 minutes under load) | NFPA 25 §8.3.2 |
| Pump room temperature (cold climates / heated enclosures) | Weekly (heating season) | NFPA 25 §8.2.2 |
| Suction, discharge, and bypass gauge readings | Weekly | NFPA 25 §8.2.1 |
| Diesel fuel tank level | Weekly | NFPA 25 §8.2.3 |
| Annual flow test — full performance curve to rated capacity | Annually | NFPA 25 §8.3.3 |
| Electric pump — controller functional test | Annually | NFPA 25 §8.3.3.6 |
| Diesel engine — full inspection (battery, belts, fuel, coolant, oil) | Annually (or per manufacturer PM schedule) | NFPA 25 §8.5 |
| Pressure relief valve — inspection and test | Annually | NFPA 25 §13.7 |
| Jockey (pressure-maintenance) pump — operational test | Monthly | NFPA 25 §8.3.1 |
What you'll receive from Zion
Every visit ends with documentation your AHJ and insurance carrier will accept on the first review:
- NFPA 20-compliant acceptance test report with full pump curve data (churn, 100%, 150% of rated flow) and comparison to nameplate rating
- Annual flow test data sheet showing suction pressure, discharge pressure, and flow at rated, overload, and shutoff conditions
- Diesel engine inspection record covering fuel, oil, coolant, battery voltage, belt tension, and exhaust system
- Controller functional test report for both electric and diesel pump controllers
- Weekly run log template and instructions for your facility staff (most AHJs and insurance carriers require evidence of weekly churn tests)
- Deficiency report with NFPA 25 citation and impairment classification for any test failure
- Digital records retained in your customer portal for insurance, AHJ, and due-diligence access
Common deficiencies we find
If you're inheriting a building or evaluating an incumbent service provider, these are the issues we see most often — and what they cost to fix when found before an AHJ visit:
- Annual flow test never performed — the churn test (no-flow run) is easy to do weekly, but it does not detect a pump that has degraded below rated capacity; only a full flow test catches that, and it is the deficiency most frequently absent from acquired-building records
- Churn test logs missing or not current — most commercial property insurance programs require evidence of weekly pump runs; the absence of logs is both a code deficiency under NFPA 25 and a policy compliance issue
- Diesel battery not load-tested or has never been replaced — a diesel fire pump with a discharged start battery will not auto-start; NFPA 25 §8.5 requires battery testing at each annual inspection

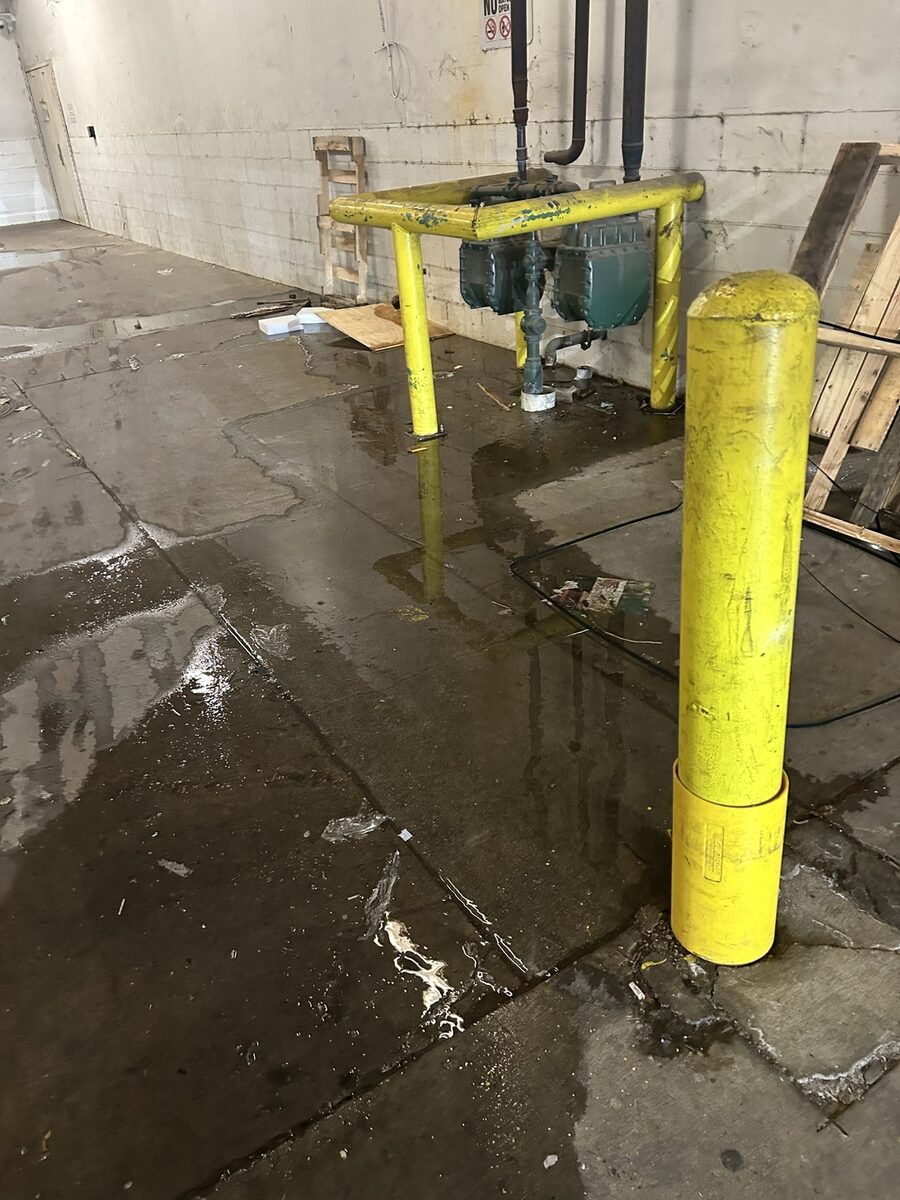

- Pump room ambient temperature below minimum — diesel engines and wet-pipe system connections in pump rooms require a minimum 40°F ambient; we find unheated or inadequately heated pump rooms in Texas metal buildings every winter
- Pressure relief valve seized open or continuously discharging — a relief valve that was sized incorrectly, or that opened during a test and failed to reseat, continuously bypasses the pump output and prevents the system from building rated pressure

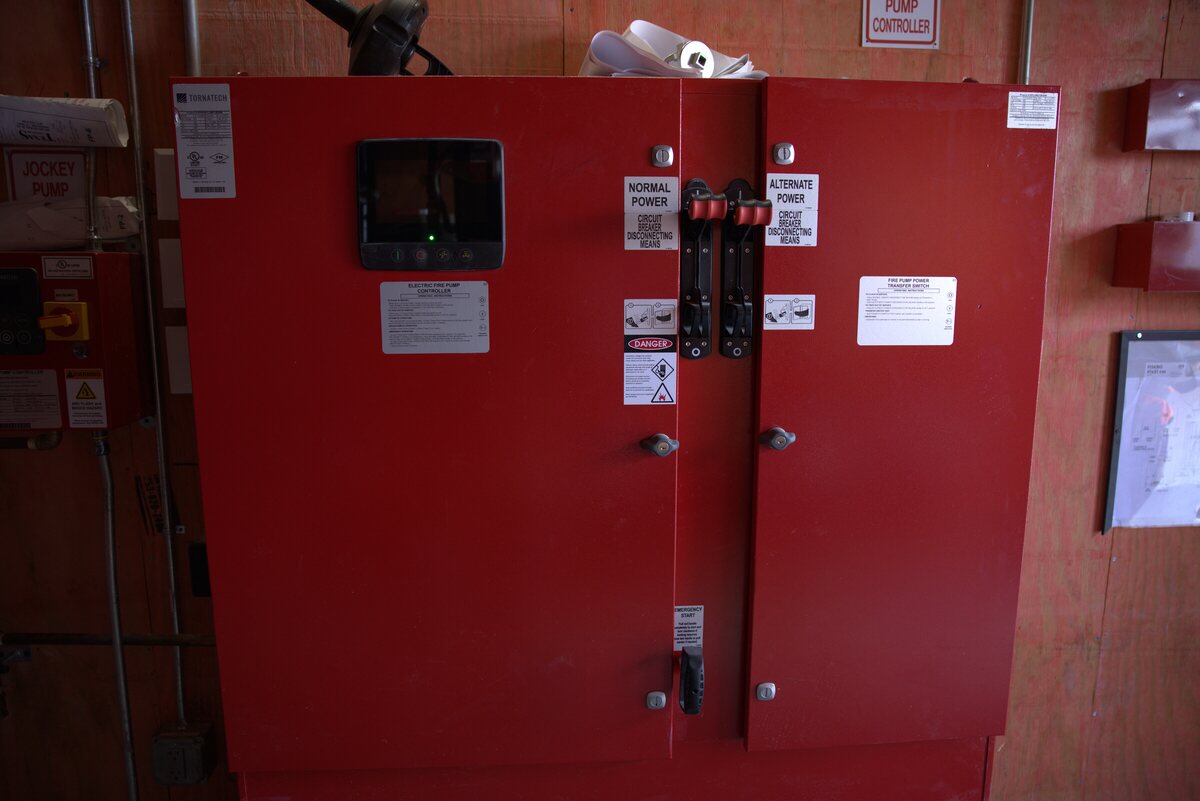

- Controller in 'manual' position — a controller left in manual after a service event will not auto-start the pump on a fire signal; this is a critical impairment that is not always caught by the alarm monitoring system
- Jockey pump short-cycling — a jockey pump that runs continuously indicates a system leak; if not investigated, it can burn out the jockey motor and mask the leak that is slowly reducing sprinkler system pressure
- Flow test meter not calibrated or sight glass obscured — if the Pitot gauge or flow meter used in the annual test hasn't been calibrated, the flow curve data is meaningless for comparing year-over-year pump degradation
Why Zion for this work
Full-curve flow testing

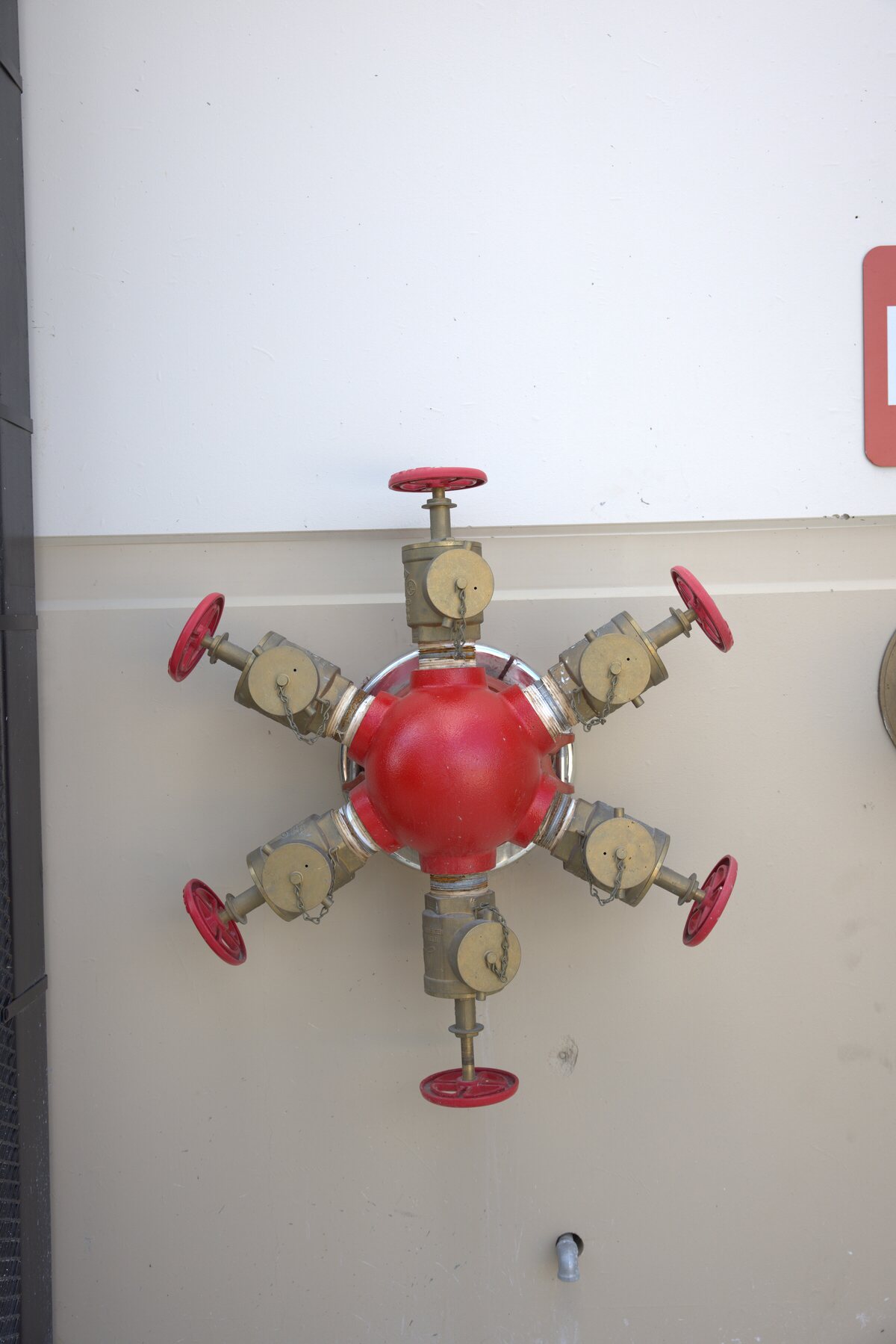

We conduct NFPA 20 / NFPA 25 annual flow tests at churn, 100%, and 150% of rated capacity with a calibrated Pitot gauge or flow meter — not just a pressure check at the test header. You get a complete pump curve, not a pass/fail sticker.
Diesel PM expertise
Diesel-driven fire pumps have engine maintenance requirements that overlap with mechanical contractor scope — fuel quality, battery, cooling system, exhaust. Our technicians are trained on diesel pump PM specifically to NFPA 25 §8.5 requirements, not adapted from general diesel mechanic work.
Coordination with sprinkler and monitoring
A fire pump is part of a system. Controller trouble signals need to reach the monitoring station. Pump room conditions affect the sprinkler system performance. We coordinate fire pump work with our sprinkler and monitoring teams so nothing falls through the gap between contractors.
Frequently asked questions
Does my Texas building require a fire pump?
A fire pump is required when the available water supply pressure and flow cannot meet the hydraulic demand calculated by the sprinkler or standpipe system designer per NFPA 13 or NFPA 14. This is determined by a hydraulic calculation comparing municipal flow test data (from the water utility) to the system demand. High-rise buildings nearly always require a fire pump due to the pressure required to supply upper floors. Large-footprint warehouses may also require a pump if municipal supply is limited. We can review your water utility flow test data and determine whether a pump is needed before you commit to equipment.
What is the difference between a fire pump and a jockey pump?

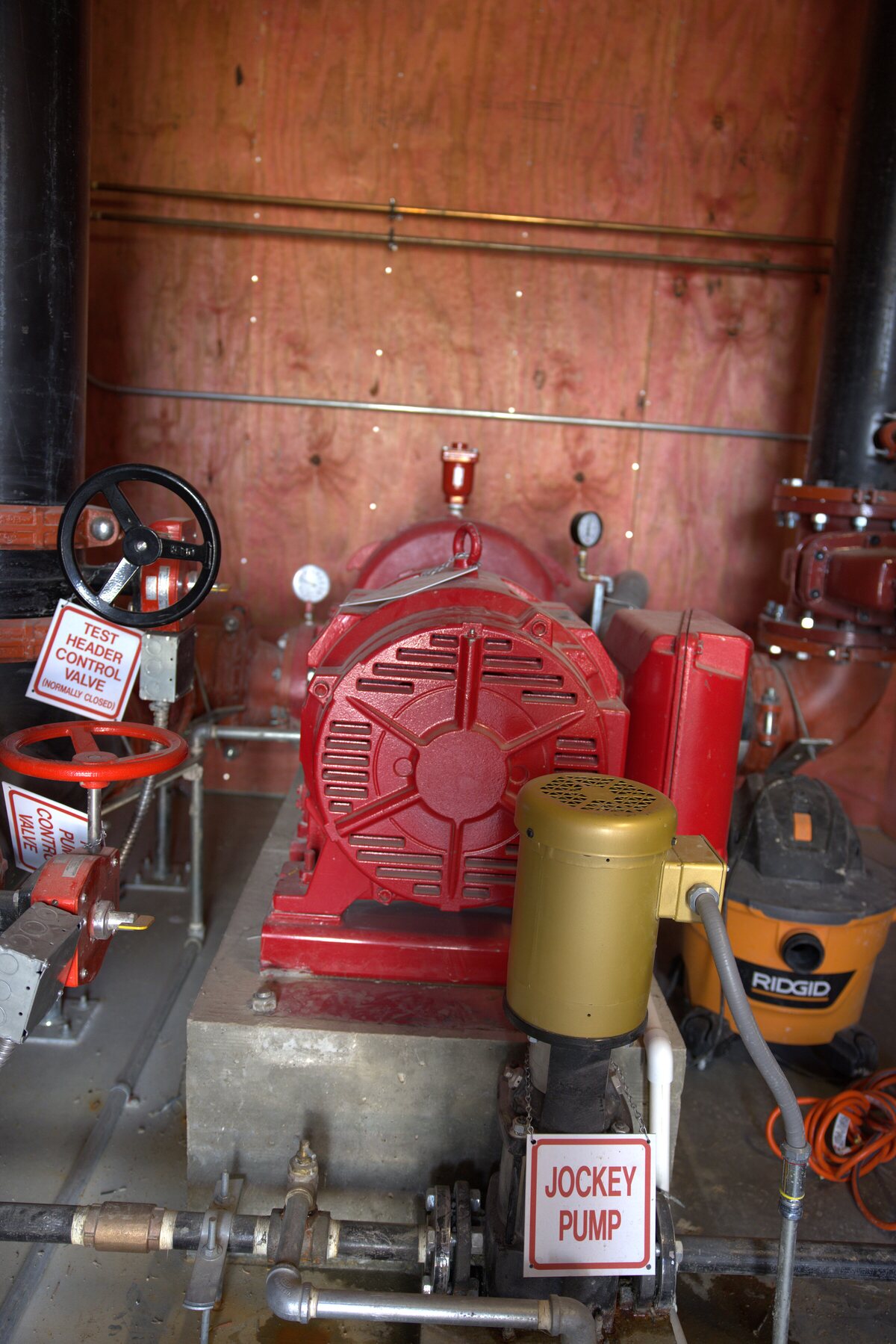

The fire pump (also called the main pump) provides the rated flow and pressure to the fire suppression system during an actual fire event. The jockey pump (pressure-maintenance pump) is a small pump that runs continuously to compensate for minor system leaks and keep the system at design pressure, preventing the main pump from starting for minor pressure drops. The jockey pump should be the only pump running under normal conditions. If the main pump is running frequently, there is a system problem that requires investigation.
How often does a fire pump need to be tested in Texas?
NFPA 25 Chapter 8 requires a no-flow churn test weekly (pump runs for a minimum period without discharging water), a full-performance flow test annually (at rated, 150%, and shutoff conditions), and a complete inspection of the driver (electric motor or diesel engine) annually. Diesel engines require additional weekly checks of fuel level, battery, and oil. Records of all tests must be maintained and available for AHJ review.
What is a fire pump churn test?
A churn test (also called a shutoff test) runs the pump with the discharge valve closed, verifying that the pump starts automatically on a pressure drop, runs for the required duration, and shuts down without developing excessive heat or pressure. It does not test the pump's flow capacity — that requires the annual full-flow test. Per NFPA 25 §8.3.1, churn tests must be performed weekly for electric-driven pumps and at least weekly for diesel-driven pumps, with a minimum 30-minute run for diesel engines.
Electric or diesel fire pump — which is required?
NFPA 20 allows either. The choice depends on the building's electrical supply reliability and local AHJ requirements. IFC §913.5 and NFPA 20 Chapter 9 require diesel-driven pumps where the power supply is not reliable or where the AHJ determines that the electric supply does not meet the reliability standard. High-rise AHJs in Texas (Dallas, Houston, Austin) commonly require diesel-driven or dual-driver fire pumps. Diesel pumps require on-site fuel storage, ventilation, and engine PM that electric pumps do not.
